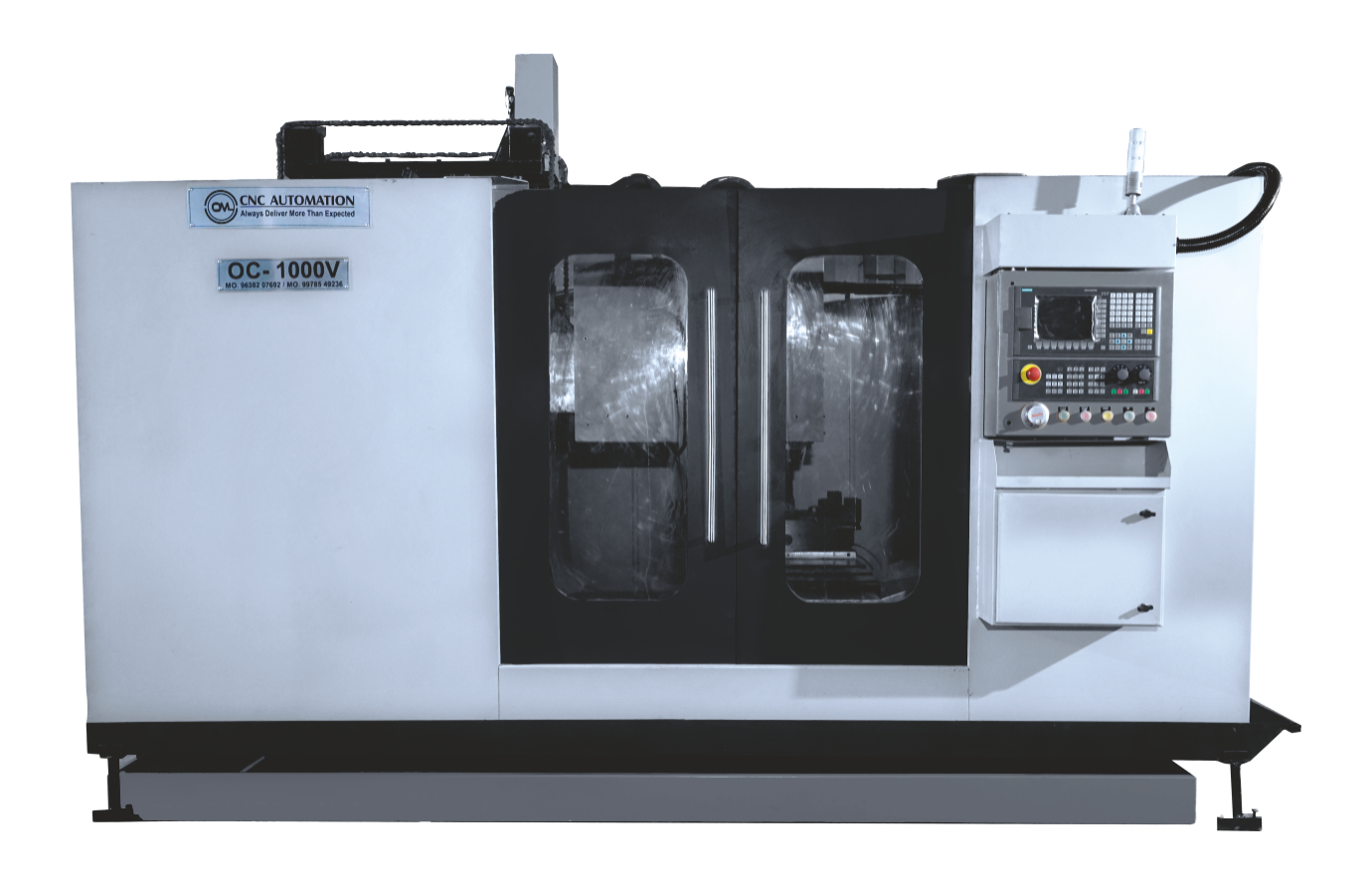

| DESCRIPTION | OC - 500V (3 AXIS) | OC - 1000V (3 AXIS) |
|---|---|---|
| MAX. PITCH CIRCLE (PCD) | MAX. OD. 500 mm | MAX. OD. 1000 mm |
| MAX. DRILLING CAPACITY (U-DRILL) | 40 mm | 55 mm |
| WIDTH OF BASE | 375 mm | 600 mm |
| AXIS | ||
| X - TRAVEL | 500+25 mm | 1000+25 mm |
| Y - TRAVEL | 500+25 mm | 1000+25 mm |
| Z - TRAVEL | 400 mm | 400 mm |
| X - AXIS TYPE | BOX GUIDEWAYS | |
| Y - AXIS TYPE | HARDENED & GROUND | |
| Z - AXIS TYPE | 35 LM Guide ways | 55 LM Guide ways |
| SPINDLE | ||
| SPINDLE TO CHUCK DISTANCE | 300 mm | 350 mm |
| SPINDLE MAIN MOTOR | 10HP | 20HP |
| CLAMPING CHUCK | 300X4 JAW MANUAL | 600X4 JAW MANUAL |
| MAX. RPM | 4000 RPM (SERVO) | 4000 RPM (SERVO) |
| CONTROLLER | ||
| CONTROLLER | SIEMENS / MITSUBISHI | |
| LUBRICATION SYSTEM | ||
| LUBRICATION SYSTEM | Auto | |
| TOOLING | ||
| SPINDLE | BT40 | BT40 |
| COOLANT THROUGH SPINDLE (CTS) | INCL. | INCL. |
| ATC | 12 TOOLS | 12 TOOLS |
| OTHERS | ||
| OVER ALL DIMENSION (LXWXH) | 2850X1950X2725 | 4100X3100X3300 |
| APPROX WEIGHT | 3800 Kg | 7800 Kg |
