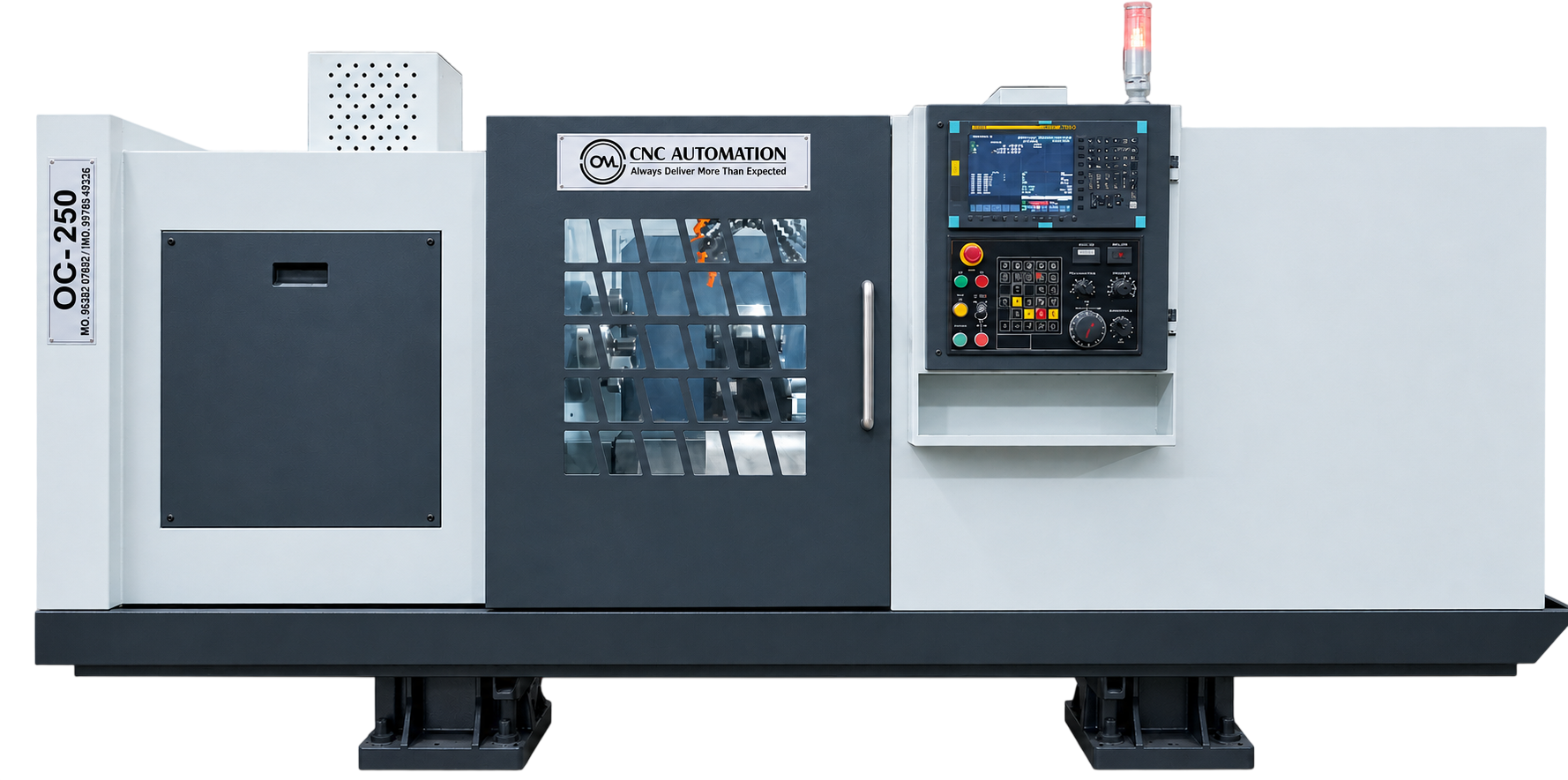

Flat Bed CNC Machine
| DESCRIPTION | OC - 200 | OC - 250 | OC - 300 | OC - 400 |
|---|---|---|---|---|
| CAPACITY | ||||
| STANDARD TURNING DIAMETER | 150 mm | 250 mm | 300 mm | 450 mm |
| MAXIMUM TURNING DIAMETER | 200 mm | 300 mm | 400 mm | 600 mm |
| TURNING LENGTH | 300 mm | 300 mm | 650 mm | 450 mm |
| ALSO AVAILABLE TURNING LENGTH | 650 to 1000 | 650 to 1000 | 1000/1500/2000/2500/3000 | 750/1000/1500/2000/2500/3000/ 3500/4000/4500/5000 |
| WIDTH OF BED | 275 mm | 325 mm | 375 mm | 450 mm |
| HEIGHT OF CENTER | 215 mm | 250 mm | 300 mm | 400 mm |
| AXIS | ||||
| X-AXIS STROKE | 100 mm | 150 mm | 200 mm | 300 mm |
| X-AXIS RAPID | 8 m/min | 8 m/min | 8 m/min | 8 m/min |
| X-AXIS GUIDEWAYS | BOX TYPE | BOX TYPE | BOX TYPE | BOX TYPE |
| Z-AXIS STROKE | 300+25 mm | 300+25 mm | 650+25 mm | 450+25 mm |
| Z-AXIS RAPID | 8 m/min | 6 m/min | 6 m/min | 5 m/min |
| Z-AXIS GUIDEWAYS | HARDENED AND GROUND | |||
| SPINDLE | ||||
| SPINDLE NOSE | A2-5 | A2-5 | A2-6 | A2-8 |
| MAX. BAR CAPACITY (IN HOLLOW CHUCK) | 25 mm | 25 mm | 50 mm | 70 mm |
| SPINDLE SPEED (MAX.) | 3000 RPM | 3000 RPM | 800 RPM | 800 RPM |
| SPINDLE MOTOR POWER (INDUCTION) | 7.5HP | 10HP | 15HP | 20HP |
| STANDARD POWER CHUCK SIZE | 200X3 JAW (closed chuck) | 250X3 JAW (closed chuck) | 250X3 JAW (closed chuck) | 315X3 JAW (closed chuck) |
| TAILSTOCK | ||||
| TAILSTOCK QUILL TRAVEL | 100 mm | 125 mm | 150 mm | 200 mm |
| TAILSTOCK QUILL DIAMETER | 50 mm | 50 mm | 75 mm | 75 mm |
| TAILSTOCK QUILL TAPER | MT-4 | MT-4 | MT-5 | MT-5 |
| TOOLING | ||||
| TURRET MAKE | PRAGATI | |||
| TURRET MODEL | SQTP 190 | |||
| NO. OF STATION | 4 | 4 | 4 | 4 |
| MAXIMUM BORING BAR DIAMETER | 32 mm | 32 mm | 40 mm | 40 mm |
| TURNING TOOL SIZE | 25X25 mm | 25X25 mm | 25X25 mm | 25X25 mm |
| LUBRICATION SYSTEM | ||||
| LUBRICATION SYSTEM | AUTO | |||
| CNC CONTROLLER SYSTEMS | ||||
| CONTROLLER | SIEMENS / FANUC / MITSUBISHI | |||
| STRUCTURE | ||||
| BASE TYPE | LEGTYPE | LEGTYPE | PLANO | PLANO |
| ACCURACY | 0.05 | 0.05 | 0.05 | 0.05 |
| OVER ALL DIMENSION (LXWXH) | 2620X1300X1700 | 3050X1750X1750 | 3100X1750X1850 | 3200X2025X1875 |
| APPROX WEIGHT | 2200 Kg | 2800 Kg | 3200 Kg | 3800 Kg |
