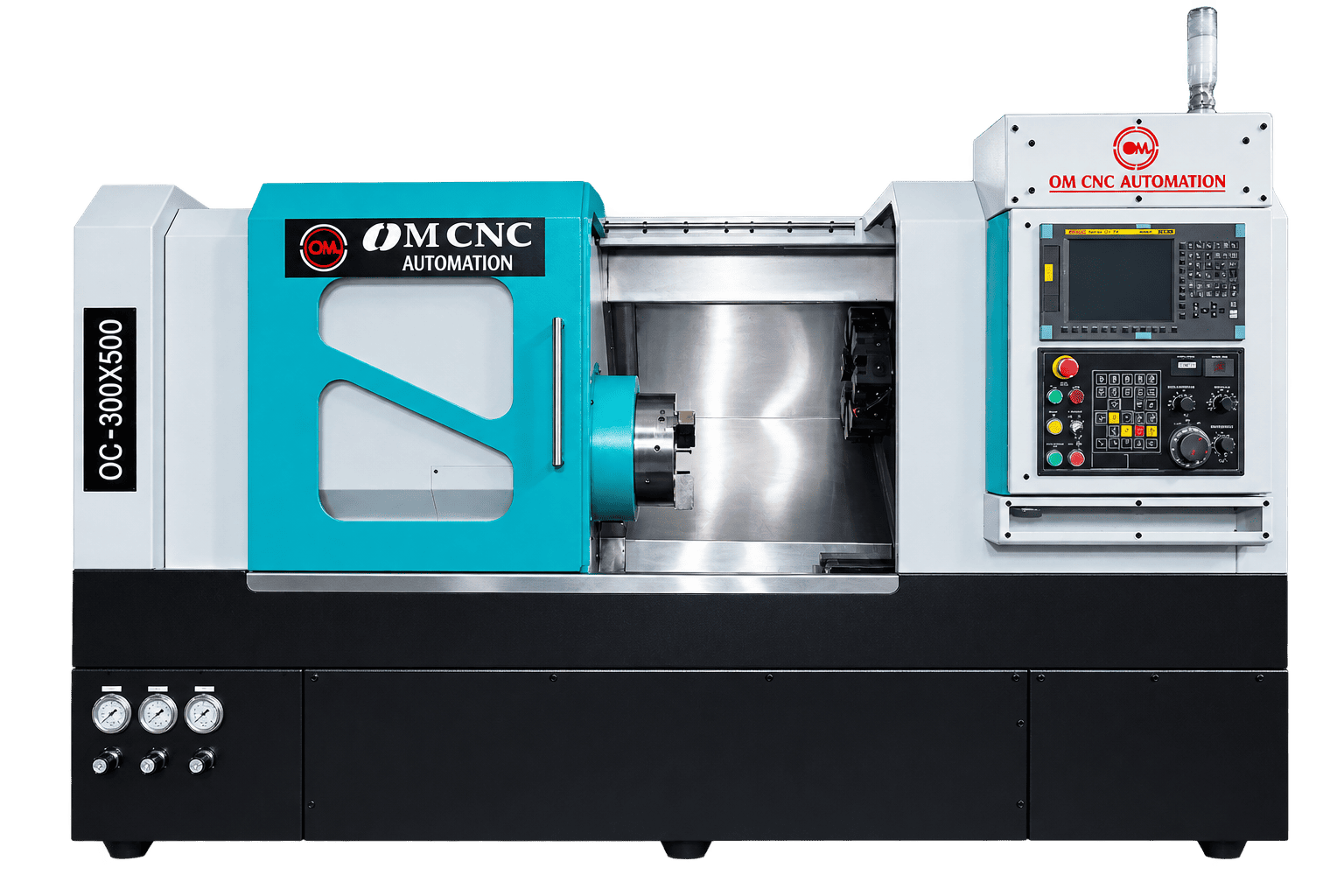

CNC Turning Machine Slant Bed
| DESCRIPTION | 200/500 | 300/500 | 400/500 | 400/800 | 400/1500 | 400/2000 |
|---|---|---|---|---|---|---|
| CAPACITY | ||||||
| MAXIMUM TURNING LENGTH | 500 mm | 500 mm | 500 mm | 800 mm | 1500 mm | 2000 mm |
| ALLOWABLE TURNING LENGTH | Up To 1500 mm | Up To 2000 mm | Up To 3000 mm | Up To 3000 mm | Up To 3000 mm | Up To 3000 mm |
| DISTANCE BETWEEN CENTER | 500 mm | 500 mm | 500 mm | 800 mm | 1500 mm | 2000 mm |
| STANDARD TURNING DIAMETER | 200 mm | 300 mm | 300 mm | 400 mm | 400 mm | 400 mm |
| CHUCK SIZE | 200 mm | 300 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| MAX. TURNING DIA. | 330 mm | 500 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| X-AXIS TRAVEL | 175 mm | 225 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Z-AXIS TRAVEL | 500 mm | 500 mm | 500 mm | 800 mm | 1500 mm | 1800 mm |
| RAPID TRANSVERSE (X axis) | 20 m/min | 20 m/min | 20 m/min | 20 m/min | 20 m/min | 20 m/min |
| RAPID TRANSVERSE (Z axis) | 20 m/min | 20 m/min | 20 m/min | 20 m/min | 15 m/min | 15 m/min |
| SLIDE | ||||||
| X AXIS BALL SCREW (D X P) | 32 x 10 | 32 x 10 | 32 x 10 | 40 x 10 | 40 x 10 | 40 x 10 |
| Z AXIS BALL SCREW (D X P) | 32 x 10 | 40 x 10 | 40 x 10 | 40 x 10 | 40 x 10 | 40 x 10 |
| MOTOR TORQUE (X axis) | 11 NM | 11 NM | 11 NM | 11 NM | 11 NM | 11 NM |
| MOTOR TORQUE (Z axis) | 11 NM | 11 NM | 11 NM | 11 NM | 11 NM | 11 NM |
| MAIN SPINDLE | ||||||
| SPINDLE MOTOR : FANUC | 15/11 KW | 15/11 KW | 15/11 KW | 15/11 KW | 15/11 KW | 18/15 KW |
| SPINDLE MOTOR : SIEMENS | 12/16 KW | 12/16 KW | 12/16 KW | 12/16 KW | 18/15 KW | 18/15 KW |
| SPINDLE NOSE | A2-5 | A2-6 | A2-8 | A2-8 | A2-8 | A2-11 |
| MAXIMUM BAR CAPACITY | 52 mm | 75 mm | 75 mm | 75 mm | 75 mm | 90 mm |
| SPINDLE SPEED RANGE | 50-3000 RPM | 50-2500 RPM | 50-1800 RPM | 50-1800 RPM | 50-2000 RPM | 50-2000 RPM |
| FULL POWER SPEED RANGE | 750-2250 RPM | 500-1500 RPM | 500-1500 RPM | 500-1500 RPM | 400-1200 RPM | 400-1200 RPM |
| TURRET | ||||||
| NUMBER OF STATION | 8 | 8 | 8 | 8 | 8 | 8 |
| MAX. BORING BAR DIA. | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 50 mm |
| TOOL SIZE (CROSS SECTION) | 25 x 25 | 25 x 25 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 |
| TAILSTOCK | ||||||
| QUILL DIA. | 85 mm | 85 mm | 85 mm | 85 mm | 130 mm | 130 mm |
| QUILL STOCK | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| OTHERS | ||||||
| WEIGHT | 3700 KG | 4200 KG | 4300 KG | 5000 KG | 7100 KG | 9500 KG |
| POSITIONING ACCURACY | 0.010 mm | 0.010 mm | 0.010 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| REPEATABILITY | 0.005 mm | 0.005 mm | 0.005 mm | 0.005 mm | 0.005 mm | 0.005 mm |
