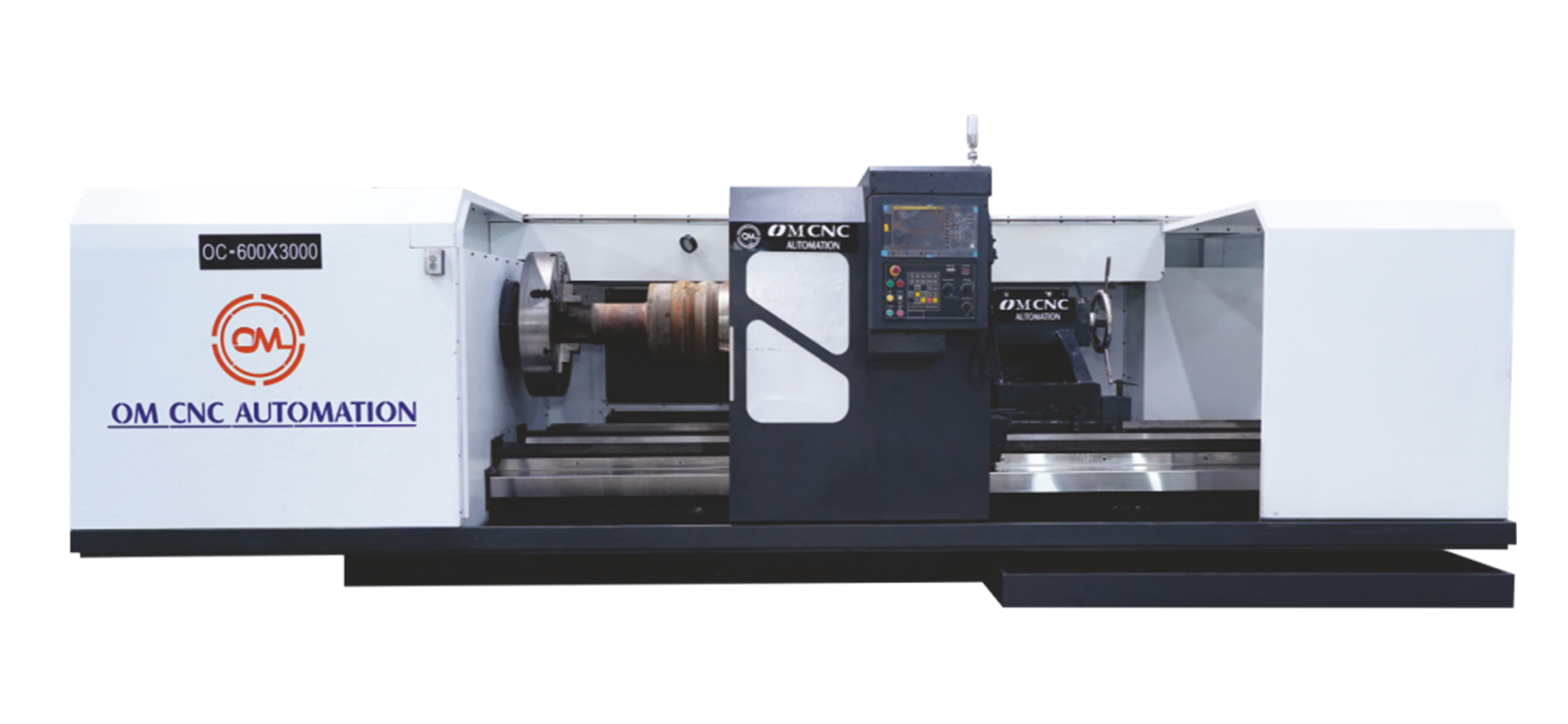

| PARAMETERS | OC - 600 X 3000 | OC - 800 X 4000 | OC - 1000 X 5000 |
|---|---|---|---|
| MAX. TURNING LENGTH | 3000 mm | 4000 mm | 5000 mm |
| MAX. TURNING DIAMETER | 600 mm | 800 mm | 1000 mm |
| HEIGHT OF CENTER | 525 mm | 635 mm | 750 mm |
| WIDTH OF BED | 760 mm | 900 mm | 1100 mm |
| GUIDEWAYS | 4 | 4 | 4+1 |
| BED TYPE | One Piece Plano | One Piece Plano | One Piece Plano |
| HEADSTOCK SPINDLE TAPER | MT 6 | MT 6 | MT 6 |
| SPINDLE FRONT AXIAL DIAMETER | 215 mm | 215 mm | 250 mm |
| CHUCK (MANUAL DOG) | 600x4 Jaw | 750x4 Jaw | 1000x4 Jaw |
| CHUCK CLAMPING DIAMETER | 100-500 mm | 150-600 mm | 200-800 mm |
| MAX. WORKPIECE WEIGHT | 6 Ton | 8 Ton | 10 Ton |
| TAILSTOCK | |||
| TAILSTOCK QUILL DIAMETER | 150 mm | 175 mm | 200 mm |
| TAILSTOCK QUILL TRAVEL | 250 mm | 300 mm | 350 mm |
| TAILSTOCK QUILL TAPER | MT 6 | MT 6 | MT 6 |
| TAILSTOCK MOVABLE | Manual | Manual | Manual |
| TAILSTOCK QUILL MOVABLE | Manual | Manual | Manual |
| SPINDLE | |||
| SPINDLE SPEED | 20-100 RPM | 20-100 RPM | 10-80 RPM |
| SPINDLE MAIN MOTOR | 30 HP Induction | 40 HP Induction | 50 HP Induction |
| AXIS | |||
| X-AXIS CROSS FEED SPEED | 2-3000 mm/min | 2-3000 mm/min | 2-2500 mm/min |
| Z-AXIS LONGITUDINAL FEED SPEED | 2-3000 mm/min | 2-3000 mm/min | 2-2500 mm/min |
| X-AXIS CROSS RAPID MOVEMENT | 5000 mm/min | 4500 mm/min | 4000 mm/min |
| Z-AXIS LONGITUDINAL RAPID MOVEMENT | 4000 mm/min | 4000 mm/min | 3500 mm/min |
| CONTROLLER SYSTEM | |||
| CONTROLLER SYSTEM | Fanuc 0i TF Plus / Siemens 808d Advance | Fanuc 0i TF Plus / Siemens 808d Advance | Fanuc 0i TF Plus / Siemens 808d Advance |
| HEADSTOCK & DRIVE | |||
| HEADSTOCK BEARING | Taper Roller | Taper Roller | Taper Roller |
| X-BALL SCREW DIAMETER | 50 mm | 50 mm | 63 mm |
| Z-BALL SCREW DIAMETER | 63 mm | 63 mm | 80 mm |
| HEADSTOCK DRIVEN | Gear Driven | Gear Driven | Gear Driven |
| TOOLING | |||
| TOOLPOST (FIXED TYPE) | One Piece Two Position | One Piece Two Position | One Piece Two Position |
| TOOL HOLDER SIZE | 40x40 mm | 40x40 mm | 50x50 |
| OTHERS | |||
| APPROX WEIGHT | 9500 Kg | 13500 Kg | 19000 Kg |
